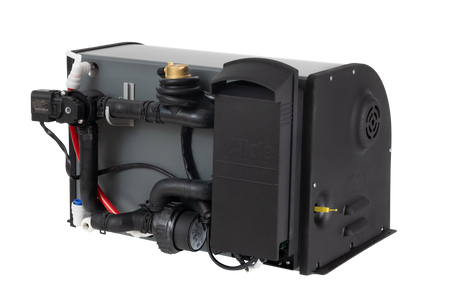

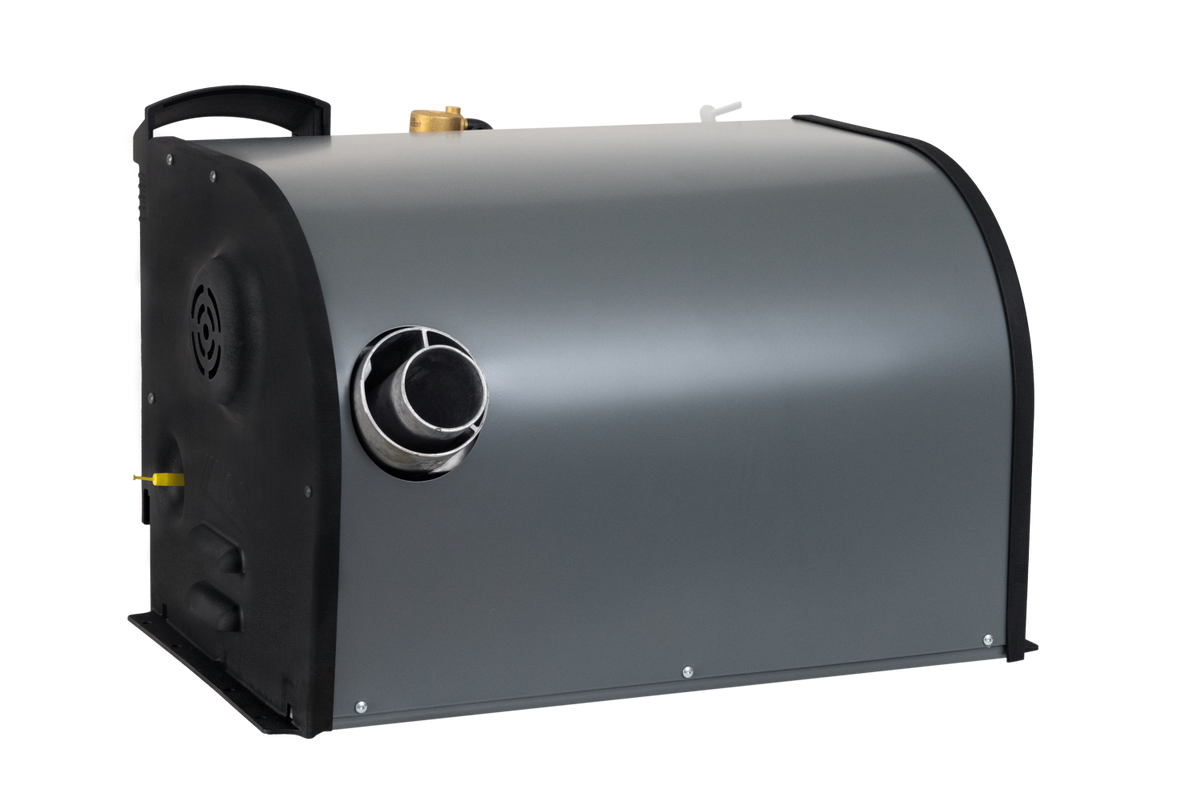

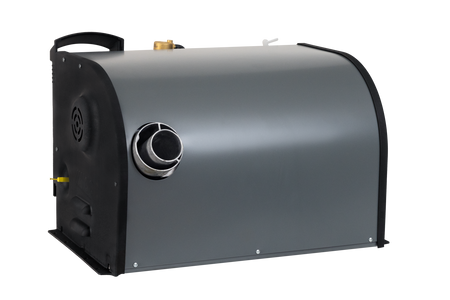

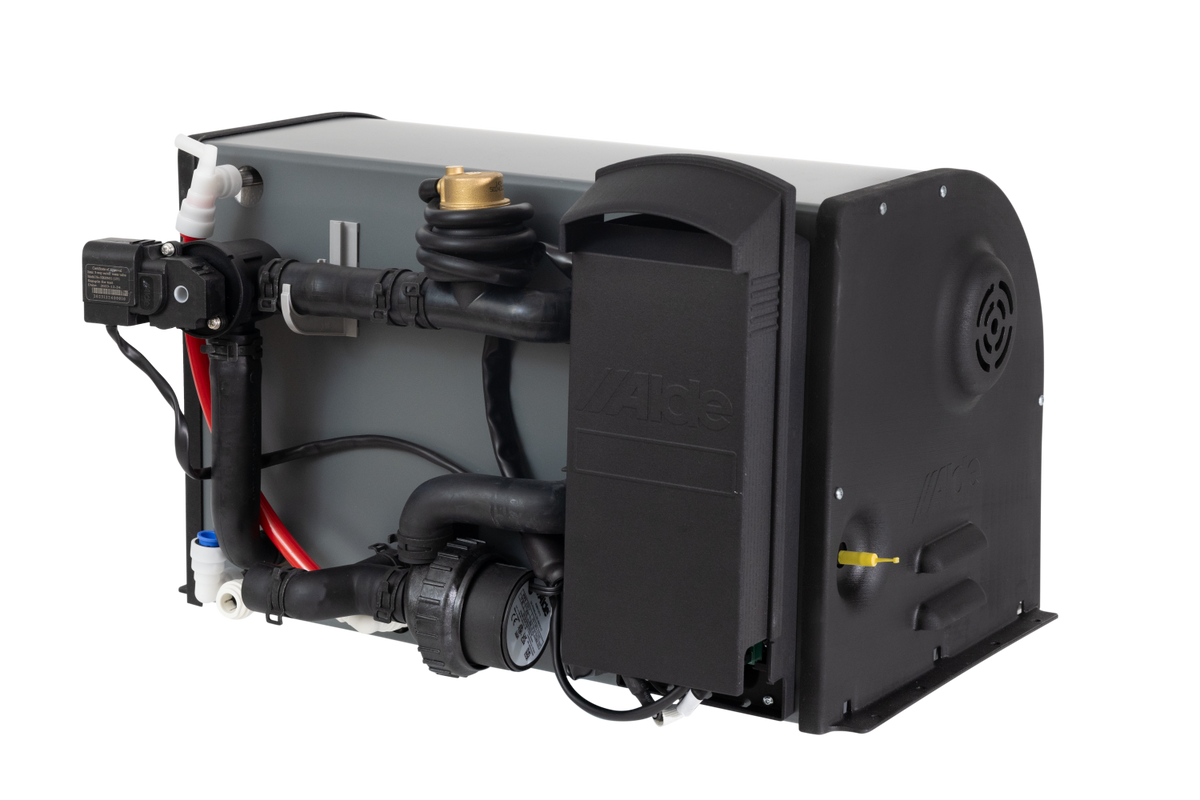

Alde Compact 4000 D — Diesel Boiler & Water Heater
The Alde Compact 4000 D brings together diesel-powered central heating and hot water in one compact unit, built for anyone who wants to run their heating straight from the vehicle's own diesel tank rather than relying on gas bottles. Available as the standard model or the upgraded Plus version, both combine a stepless diesel burner with mains electric heating elements, giving you up to 9kW of combined output whenever you need it.
Heat is distributed the Alde way — through pipes, convectors and heating accessories routed around the vehicle, so warmth rises gently through air gaps rather than blasting out from a single vent. It's a genuinely modular system too, suited to campervans, overlanders, sports homes, and luxury horseboxes alike.
Standard or Plus — what actually changes?
The core heating performance is identical between the two — same diesel burner, same fuel consumption, same 9kW combined output. Here's what genuinely sets them apart:
Standard
- 10L hot water tank, standard delivery
- Electric power steps: 1200W / 2100W / 3300W
- 305 x 420 x 500mm, 14kg
- Suitable for UK inland waterway installations
Plus
- Continuous hot water from the same 10L tank — less likely to run cold mid-shower during heavy use
- Electric power steps: 1050W / 2100W / 3150W — a gentler first step, useful on lower-amperage hook-ups
- 310 x 420 x 500mm, 15kg
Everything else — diesel output, fuel consumption, tank volumes, pressures, and dual-zone heating — is exactly the same on both models. If continuous hot water isn't a priority for you, the standard model gives you the same core heating performance for less money and less weight.
Full specification (applies to both models)
| Combined output | Up to 9kW (1–6kW diesel + 1–3kW electric) |
| Diesel power | 1–6kW, stepless |
| Diesel consumption | 0.1 to 0.6 L/h |
| Fuel compatibility | EN590 diesel & HVO100 |
| Electric supply | 230–240V AC, 50Hz, 16A fuse |
| Hot water tank | 10 litres |
| Glycol tank volume | 3.5 litres |
| Max. pressure, glycol circuit | 0.05 MPa (0.5 bar, open system) |
| Max. pressure, water circuit | 0.3 MPa (3.0 bar) |
| Max. system temperature | 90°C |
| Battery voltage | 12V DC |
| 12V power consumption | Max. 20A |
| 12V fuse | 2 x 15A |
| Dual-zone heating | Yes |
Key features
- Runs on your vehicle's own diesel tank — no separate gas bottles to carry, refill or swap out, and compatible with both standard EN590 diesel and HVO100 for a lower-carbon option.
- Stepless diesel burner — output adjusts smoothly across the 1–6kW range rather than jumping between fixed settings, so you get exactly the heat you need.
- Heating and hot water in one unit — a 10-litre tank supplies hot water for washing and showering alongside central heating, with the Plus model offering continuous delivery.
- Dual-zone heating — set and control temperatures in two separate areas of the vehicle independently.
- Quiet, convection-based heating — Alde's smart ICT technology senses conditions and distributes warmth evenly through pipes and convectors, without noise or temperature swings.
- User-friendly control panel — a simple, modern interface for day-to-day operation.
- Genuinely versatile — suited to campervans, overlanders, sports homes, luxury horseboxes, and (on the standard model) canal boats and other UK inland waterway vessels.
This is a diesel-fired heating and hot water system involving fuel lines, combustion, and mains electrical connections. Incorrect installation can create a serious fire, carbon monoxide, or electrical safety risk. This unit must only be installed, commissioned, and serviced by a qualified, competent installer or a manufacturer-approved service centre, in line with Alde's official installation and safety documentation. Do not attempt to install or modify this system yourself.
Choose your model above — Standard or Plus — to add the right unit to your basket.
